B6075
1 metre frame designed to support two condensers back to back, or other singular units. This frame weighs 42 kgs, and has a maximum load bearing of 480 kgs, it is totally free standing with no roof penetrations. No welding, drilling, grinding or cutting on site. Complete solution. Off the shelf.

B6077
A 2 metre frame as per B6075, weighing 70 kgs, and will support up to 720 kgs.

B6078
A 3 metre frame as per B6075, weighing 97 kgs, and will support up to 960 kgs.

B6088
H Frame Kit, 305 sq mm feet, load up to 100kgs, to support ductwork, pipework etc..comes as a complete kit, all you need is strut cut to your desired height/width, and simply slot it into the nylon foot. All nuts, bolts, fixings supplied. Foot fleece and angled AV mats for pitched surfaces available on request.




SCROLL DOWN TO VIEW MORE ITEMS
B6089
H Frame Kit, 450 sq mm feet for heavier loads up to 150 kgs per set.

B6357
Multi Foot Small 400 x 180mm muti foot for loads up to 77 kgs each, for pipework, threaded rod etc..

B6359
Multi Foot Large 600 x 220 Multi Foot for heavier loads up to 142 kgs. Foot fleece and AV mats available upon request.

B6735
Fix It Foot Small 250 x 180 x 95mm with in built AV properties for small units to support a weight of up to 100 kgs. Comes with slotted channel to support spring nuts for easy fixings.

B6736
Fix It Foot Medium 400 x 180 x 95mm for a load rating of 200 kgs each.

B6737
Fix It Foot Large 600 x 220 x 95mm for a load rating of 300 kgs each.

B9096
Fix It Foot Extra Large 1000 x 180 x 95mm for a load rating of 500 kgs each.







SCROLL DOWN TO VIEW MORE ITEMS

B9043
Fix It Foot Low Profile, 250mm x 130mm x 50mm for loads up to 50 kg, with built in AV properties.

B9045
Fix It Foot Low Profile, 400mm x 130mm x 50mm for loads up to 100 kg each, with built in AV properties.

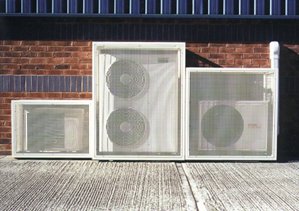

B6192
Small Condenser Unit Guard 600x900 unobtrusive guards to deter vandalism and prevent damage to valuable equipment. The Guards are simple and easy to install, and all panels are removable to allow maintenance of the unit.

B6191
Medium Condenser Unit Guard 1000x1000

B6190
Large Condenser Unit Guard 1300x1000

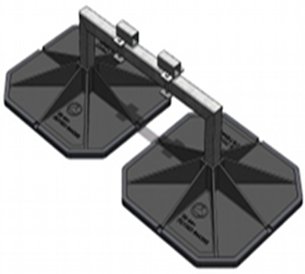

B9217
Fixed I Beam support including clamps enable very heavy weights (up to 800 kgs) to be supported across an I Beam span. Kit includes x2 600mm mega feet, x2 600mm AV Mats, x2 Clamp kits and a link assembly.

B9421
As above I beam assembly supported by 450mm feet for max loads up to 600kg per support.

B9423
As above but also allows the flexibility of height adjustment on 450mm feet for max loads up to 500kg per support.

B9737
Adjustable I Beam support is as above, however allows the flexibility of height adjustment.

B9377
Heavy Duty (HD) Cube, x4 450mm Mega Feet, load of 1600 kgs, 600mm high.

B9375
x4 600mm Mega Feet, load 2000kgs, 600mm high.

B9378
x4 450mm Mega Feet, load 1600kgs, 200mm high.

B9376
x4 600mm Mega Feet, load 2000kgs, 200mm high.





 SCROLL DOWN TO VIEW MORE ITEMS




B9374
x2 Adjusters to raise heights or the HD cubes up a further 140mm

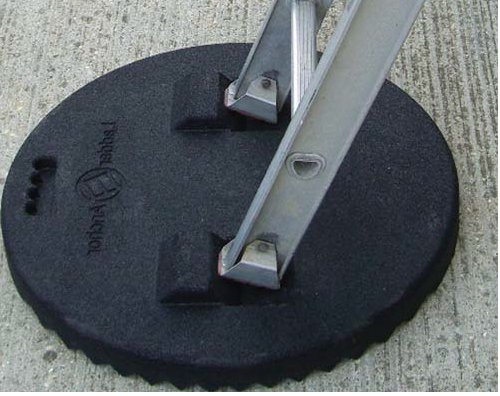

B9289
On average 13 people a year die at work falling from ladders and nearly 1200 suffer major injuries. The Big Foot Ladder Anchor is
a simple safety device that sits under the feet of your ladder, preventing it from slipping, sinking and twisting. The Big Foot Ladder Anchor can also save labour costs by eliminating the need to 'foot' the ladder.
